Installing Case IH Disrupters

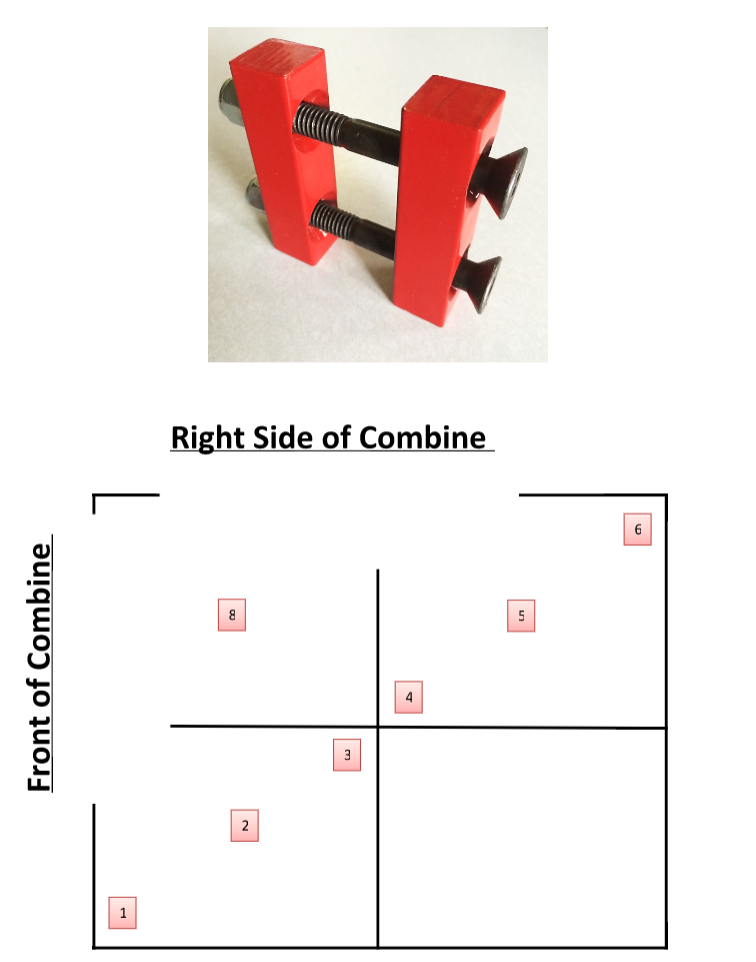

Flagship Disrupters

1. The Disrupter lugs install in only 3 of the 4 skip wire inserts.

2. Two on the right side of the combine and front one on the left side of the combine.

3. Remove 3 skip wire inserts and place them on the left side of the combine placing them exactly the way they were removed

from combine.

4. Place three disrupters in each of the three inserts as shown in picture provided.

5. The end of the ¾ x ¾ bar is the cutting edge. Disrupters are built so that you have 4 cutting edges available just by turning them over and around.

6. The bolt must go down through the countersunk hole from the top and the nut attaches to the flat side of bar.

Same Directions for All Flagship Case IH Combines.

DO NOT FORGET:

  • Torque 35ft lbs
  • Use rice bars on all specialty AFX rotors

Case IH 7010
Case IH 8010
Case IH 7120
Case IH 8120

Case IH 9120
Case IH 7230
Case IH 8230
Case IH 9230

Case IH 8240
Case IH 9240
Case IH 7230
Case IH 8230

Case IH 9230
Case IH 8240
Case IH 9240

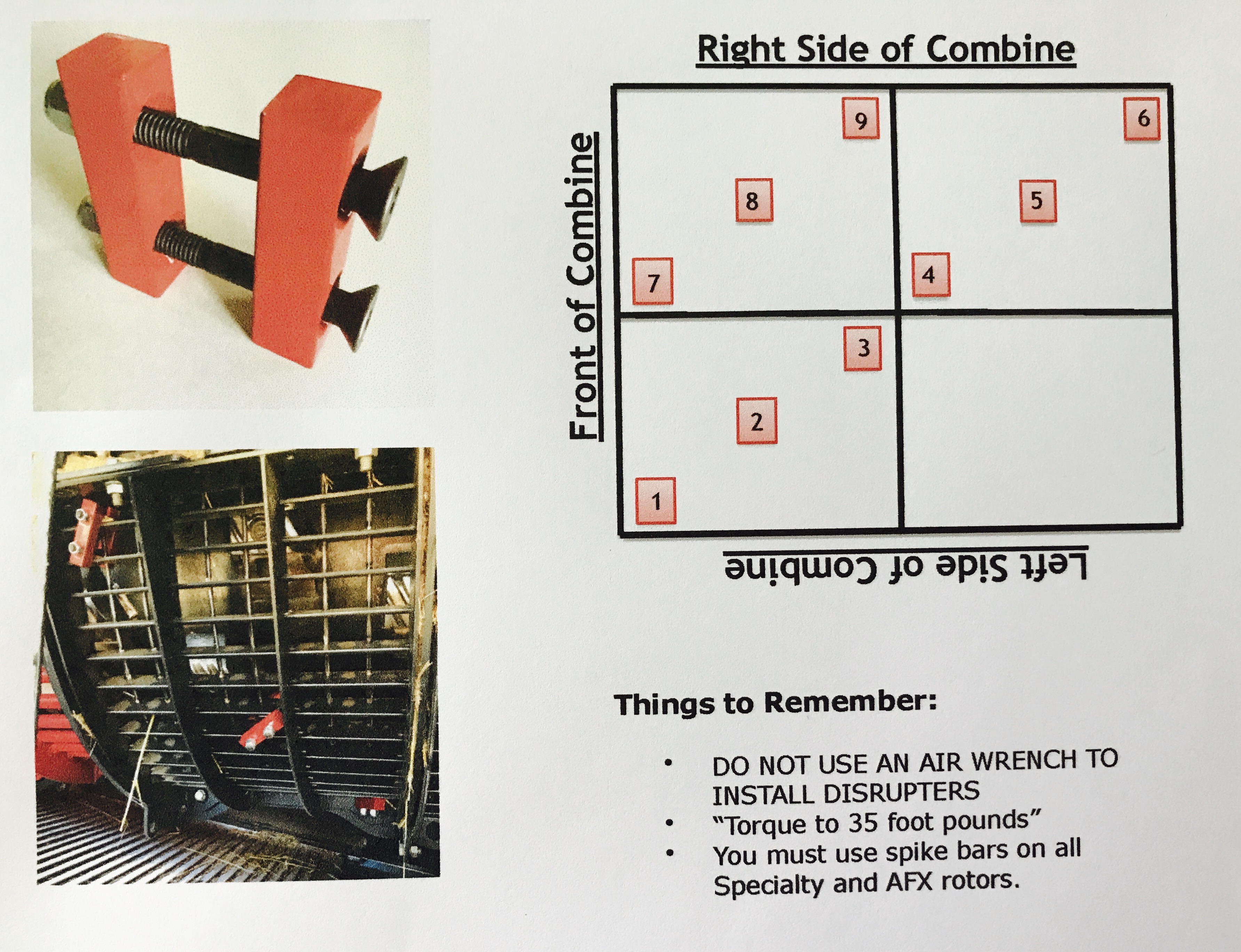

66 / 88 Series Disrupters

1. Remove your key-stock grates from your machine and place them on the floor of the left side of the combine

2. Number them (#1) Front Grate, (#2) Middle Grate and (#3) Rear Grate.

3. Draw an imaginary line from the Left Front (of #1 Front Grate) to Right Rear of
(#3 Rear Grate), and place 6 disrupter lugs, (2 in each grate), on that imaginary line.

4. Then make another imaginary line 12 inches or (to the middle of machine) on the same diagonal as the 6 lugs you have installed. Place the remaining lugs on that line with (2 in the Front Grate) and (1 in the Middle Grate).

5. You now should have 4 lugs in the Front Grate, 3 in the Middle Grate, and 2 in the Rear Grate. It DOES NOT matter if the “spike” (lug) on the disrupter is facing towards the front of the combine or the rear of the combine.

Same Directions for All 66 & 88 Series Case IH Combines.

DO NOT FORGET:

  • Torque 35ft lbs
  • Use rice bars on all specialty AFX rotors

Case IH 1680
Case IH 1688
Case IH 2188
Case IH 2377
Case IH 2388

Case IH 2577
Case IH 2588
Case IH 5088
Case IH 6088

Case IH 7088
Case IH 5130
Case IH 6130
Case IH 7130

Case IH 5140
Case IH 6140
Case IH 7140
